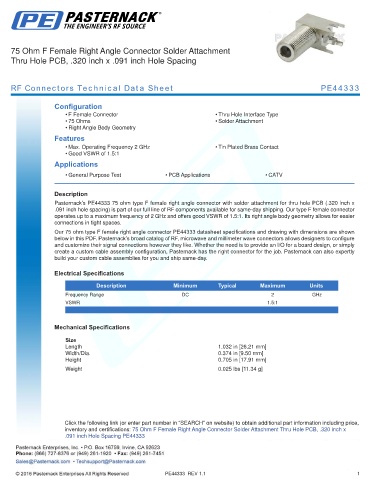

75 Ohm F Female Right Angle Connector Solder Attachment
Thru Hole PCB, .320 inch x .091 inch Hole Spacing

RF Connectors Technical Data Sheet PE44333

Configuration
• F Female Connector • Thru Hole Interface Type
• 75 Ohms • Solder Attachment
• Right Angle Body Geometry
Features
• Max. Operating Frequency 2 GHz • Tin Plated Brass Contact
• Good VSWR of 1.5:1
Applications
• General Purpose Test • PCB Applications • CATV
.
Description
Pasternack’s PE44333 75 ohm type F female right angle connector with solder attachment for thru hole PCB (.320 inch x
.091 inch hole spacing) is part of our full line of RF components available for same-day shipping. Our type F female connector
operates up to a maximum frequency of 2 GHz and offers good VSWR of 1.5:1. Its right angle body geometry allows for easier
connections in tight spaces.
Our 75 ohm type F female right angle connector PE44333 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 2 GHz
VSWR 1.5:1
.

Mechanical Specifications
Size
Length 1.032 in [26.21 mm]
Width/Dia. 0.374 in [9.50 mm]
Height 0.705 in [17.91 mm]
.
Weight 0.025 lbs [11.34 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Female Right Angle Connector Solder Attachment Thru Hole PCB, .320 inch x
.091 inch Hole Spacing PE44333

PE44333 REV 1.1 1
