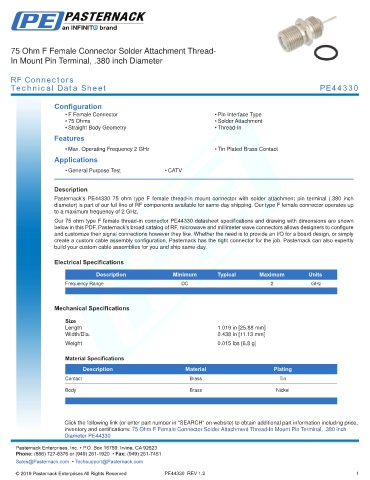

75 Ohm F Female Connector Solder Attachment Thread-
In Mount Pin Terminal, .380 inch Diameter

RF Connectors
Technical Data Sheet PE44330

Configuration
• F Female Connector • Pin Interface Type
• 75 Ohms • Solder Attachment
• Straight Body Geometry • Thread-In
Features
• Max. Operating Frequency 2 GHz • Tin Plated Brass Contact
Applications
• General Purpose Test • CATV
.
Description
Pasternack’s PE44330 75 ohm type F female thread-in mount connector with solder attachment pin terminal (.380 inch
diameter) is part of our full line of RF components available for same-day shipping. Our type F female connector operates up
to a maximum frequency of 2 GHz.
Our 75 ohm type F female thread-in connector PE44330 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 2 GHz
.

Mechanical Specifications
Size
Length 1.019 in [25.88 mm]
Width/Dia. 0.438 in [11.13 mm]
.
Weight 0.015 lbs [6.8 g]
.
Material Specifications
Description Material Plating
Contact Brass Tin

Body Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Female Connector Solder Attachment Thread-In Mount Pin Terminal, .380 inch -
Diameter PE44330 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE44330 REV 1.2 1
