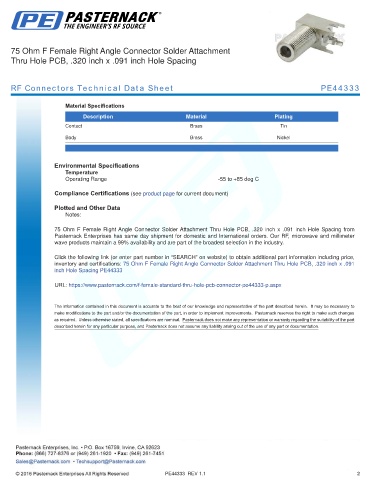

75 Ohm F Female Right Angle Connector Solder Attachment
Thru Hole PCB, .320 inch x .091 inch Hole Spacing

RF Connectors Technical Data Sheet PE44333

Material Specifications
Description Material Plating
Contact Brass Tin

Body Brass Nickel
.

Environmental Specifications
Temperature
Operating Range -55 to +85 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
75 Ohm F Female Right Angle Connector Solder Attachment Thru Hole PCB, .320 inch x .091 inch Hole Spacing from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Female Right Angle Connector Solder Attachment Thru Hole PCB, .320 inch x .091
inch Hole Spacing PE44333

URL: https://www.pasternack.com/f-female-standard-thru-hole-pcb-connector-pe44333-p.aspx

PE44333 REV 1.1 2
