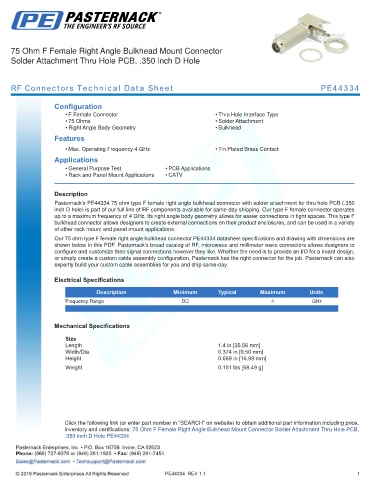

75 Ohm F Female Right Angle Bulkhead Mount Connector
Solder Attachment Thru Hole PCB, .350 inch D Hole

RF Connectors Technical Data Sheet PE44334

Configuration
• F Female Connector • Thru Hole Interface Type
• 75 Ohms • Solder Attachment
• Right Angle Body Geometry • Bulkhead
Features
• Max. Operating Frequency 4 GHz • Tin Plated Brass Contact
Applications
• General Purpose Test • PCB Applications
• Rack and Panel Mount Applications • CATV
.
Description
Pasternack’s PE44334 75 ohm type F female right angle bulkhead connector with solder attachment for thru hole PCB (.350
inch D hole) is part of our full line of RF components available for same-day shipping. Our type F female connector operates
up to a maximum frequency of 4 GHz. Its right angle body geometry allows for easier connections in tight spaces. This type F
bulkhead connector allows designers to create external connections on their product enclosures, and can be used in a variety
of other rack mount and panel mount applications.
Our 75 ohm type F female right angle bulkhead connector PE44334 datasheet specifications and drawing with dimensions are
shown below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to
configure and customize their signal connections however they like. Whether the need is to provide an I/O for a board design,
or simply create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also
expertly build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
.

Mechanical Specifications

Size
Length 1.4 in [35.56 mm]
Width/Dia. 0.374 in [9.50 mm]
Height 0.669 in [16.99 mm]
.
Weight 0.151 lbs [68.49 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Female Right Angle Bulkhead Mount Connector Solder Attachment Thru Hole PCB,
.350 inch D Hole PE44334

PE44334 REV 1.1 1
