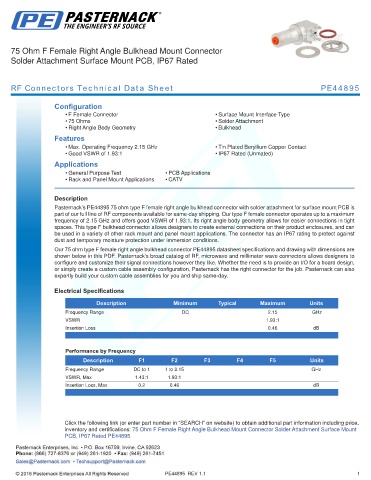

75 Ohm F Female Right Angle Bulkhead Mount Connector
Solder Attachment Surface Mount PCB, IP67 Rated

RF Connectors Technical Data Sheet PE44895

Configuration
• F Female Connector • Surface Mount Interface Type
• 75 Ohms • Solder Attachment
• Right Angle Body Geometry • Bulkhead
Features
• Max. Operating Frequency 2.15 GHz • Tin Plated Beryllium Copper Contact
• Good VSWR of 1.93:1 • IP67 Rated (Unmated)
Applications
• General Purpose Test • PCB Applications
• Rack and Panel Mount Applications • CATV
.
Description
Pasternack’s PE44895 75 ohm type F female right angle bulkhead connector with solder attachment for surface mount PCB is
part of our full line of RF components available for same-day shipping. Our type F female connector operates up to a maximum
frequency of 2.15 GHz and offers good VSWR of 1.93:1. Its right angle body geometry allows for easier connections in tight
spaces. This type F bulkhead connector allows designers to create external connections on their product enclosures, and can
be used in a variety of other rack mount and panel mount applications. The connector has an IP67 rating to protect against
dust and temporary moisture protection under immersion conditions.
Our 75 ohm type F female right angle bulkhead connector PE44895 datasheet specifications and drawing with dimensions are
shown below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to
configure and customize their signal connections however they like. Whether the need is to provide an I/O for a board design,
or simply create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also
expertly build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 2.15 GHz
VSWR 1.93:1
Insertion Loss 0.46 dB
.

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 1 1 to 2.15 GHz
VSWR, Max 1.43:1 1.93:1
Insertion Loss, Max 0.2 0.46 dB
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Female Right Angle Bulkhead Mount Connector Solder Attachment Surface Mount
PCB, IP67 Rated PE44895

PE44895 REV 1.1 1
