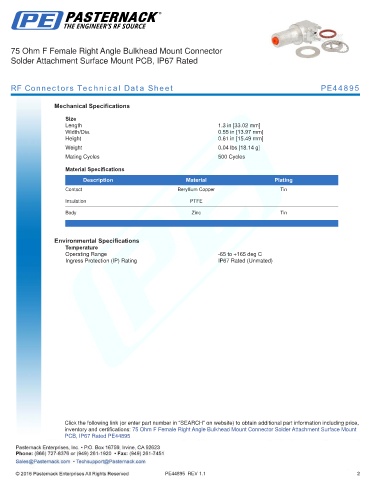

75 Ohm F Female Right Angle Bulkhead Mount Connector
Solder Attachment Surface Mount PCB, IP67 Rated

RF Connectors Technical Data Sheet PE44895

Mechanical Specifications

Size
Length 1.3 in [33.02 mm]
Width/Dia. 0.55 in [13.97 mm]
Height 0.61 in [15.49 mm]
.
Weight 0.04 lbs [18.14 g]
.
Mating Cycles 500 Cycles
Material Specifications
Description Material Plating
Contact Beryllium Copper Tin

Insulation PTFE
Body Zinc Tin
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Ingress Protection (IP) Rating IP67 Rated (Unmated)

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Female Right Angle Bulkhead Mount Connector Solder Attachment Surface Mount
PCB, IP67 Rated PE44895

PE44895 REV 1.1 2
