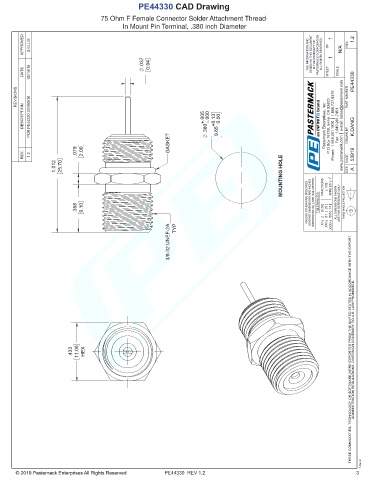

PE44330 CAD Drawing
75 Ohm F Female Connector Solder Attachment Thread-
In Mount Pin Terminal, .380 inch Diameter

APPROVED S.ELLIS IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 N/A REV 1.2

.037 0.94 THE INFORMATION AND DESIGN IN THIS DOCUMENT SHEET OF 1
DATE 05/14/19 SCALE PE44330

REVISIONS PART NUMBER

DESCRIPTION PCR PE44330 20190510 .380 +.005 -.000 9.65 +0.13 0.00 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com K.DANG

GASKET DRAWN BY
REV. 1.2 .079 2.00 CAGE 53919
1.012 25.70 SIZE A

MOUNTING HOLE FRACTIONS ± 1/32 ANGLES ± 1°

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION
.358 9.10 .2 [5.08] .01 [ .25 ] .005 [ .13 ]
TYP .X=± .XX=± .XXX=±
3/8-32 UNEF-2A

.433 11.00 HEX THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

T-Rev.B
PE44330 REV 1.2 3
