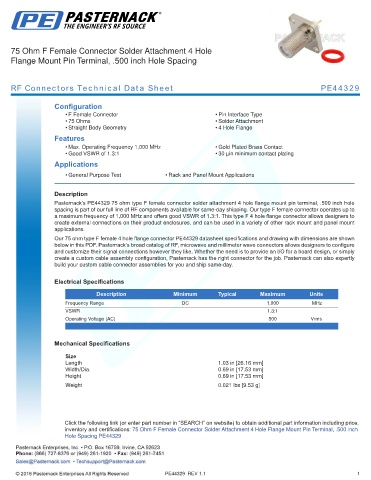

75 Ohm F Female Connector Solder Attachment 4 Hole
Flange Mount Pin Terminal, .500 inch Hole Spacing

RF Connectors Technical Data Sheet PE44329

Configuration
• F Female Connector • Pin Interface Type
• 75 Ohms • Solder Attachment
• Straight Body Geometry • 4 Hole Flange
Features
• Max. Operating Frequency 1,000 MHz • Gold Plated Brass Contact
• Good VSWR of 1.3:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE44329 75 ohm type F female connector solder attachment 4 hole flange mount pin terminal, .500 inch hole
spacing is part of our full line of RF components available for same-day shipping. Our type F female connector operates up to
a maximum frequency of 1,000 MHz and offers good VSWR of 1.3:1. This type F 4 hole flange connector allows designers to
create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
Our 75 ohm type F female 4 hole flange connector PE44329 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 1.03 in [26.16 mm]
Width/Dia. 0.69 in [17.53 mm]
Height 0.69 in [17.53 mm]
.
Weight 0.021 lbs [9.53 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Female Connector Solder Attachment 4 Hole Flange Mount Pin Terminal, .500 inch
Hole Spacing PE44329

PE44329 REV 1.1 1
