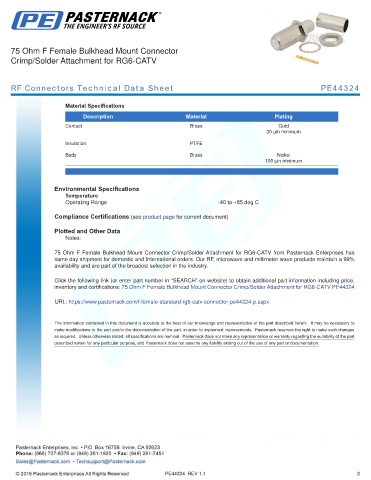

75 Ohm F Female Bulkhead Mount Connector
Crimp/Solder Attachment for RG6-CATV

RF Connectors Technical Data Sheet PE44324

Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum

Insulation PTFE
Body Brass Nickel
100 µin minimum

.

Environmental Specifications
Temperature
Operating Range -40 to +85 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

75 Ohm F Female Bulkhead Mount Connector Crimp/Solder Attachment for RG6-CATV from Pasternack Enterprises has
same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Female Bulkhead Mount Connector Crimp/Solder Attachment for RG6-CATV PE44324

URL: https://www.pasternack.com/f-female-standard-rg6-catv-connector-pe44324-p.aspx

PE44324 REV 1.1 2
