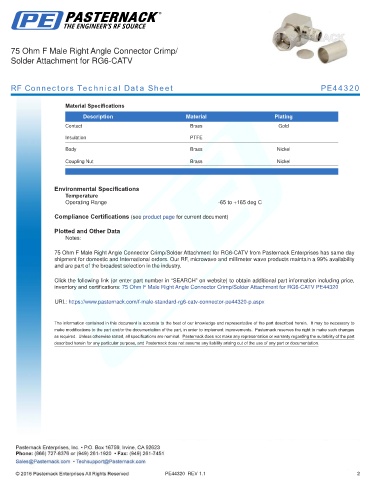

75 Ohm F Male Right Angle Connector Crimp/
Solder Attachment for RG6-CATV

RF Connectors Technical Data Sheet PE44320

Material Specifications
Description Material Plating
Contact Brass Gold

Insulation PTFE
Body Brass Nickel

Coupling Nut Brass Nickel
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

75 Ohm F Male Right Angle Connector Crimp/Solder Attachment for RG6-CATV from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Male Right Angle Connector Crimp/Solder Attachment for RG6-CATV PE44320

URL: https://www.pasternack.com/f-male-standard-rg6-catv-connector-pe44320-p.aspx

PE44320 REV 1.1 2
