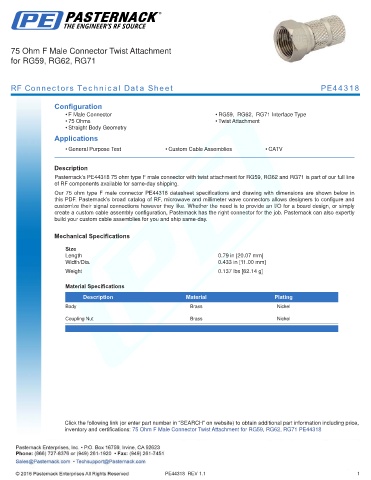

75 Ohm F Male Connector Twist Attachment
for RG59, RG62, RG71
RF Connectors Technical Data Sheet PE44318
Configuration
• F Male Connector • RG59, RG62, RG71 Interface Type
• 75 Ohms • Twist Attachment
• Straight Body Geometry
Applications
• General Purpose Test • Custom Cable Assemblies • CATV
.
Description
Pasternack’s PE44318 75 ohm type F male connector with twist attachment for RG59, RG62 and RG71 is part of our full line
of RF components available for same-day shipping.
Our 75 ohm type F male connector PE44318 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.
Mechanical Specifications
Size
Length 0.79 in [20.07 mm]
Width/Dia. 0.433 in [11.00 mm]
.
Weight 0.137 lbs [62.14 g]
.
Material Specifications
Description Material Plating
Body Brass Nickel
Coupling Nut Brass Nickel
.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Male Connector Twist Attachment for RG59, RG62, RG71 PE44318
PE44318 REV 1.1 1
