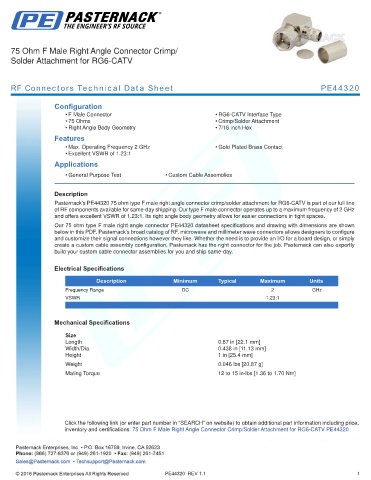

75 Ohm F Male Right Angle Connector Crimp/
Solder Attachment for RG6-CATV

RF Connectors Technical Data Sheet PE44320

Configuration
• F Male Connector • RG6-CATV Interface Type
• 75 Ohms • Crimp/Solder Attachment
• Right Angle Body Geometry • 7/16 inch Hex
Features
• Max. Operating Frequency 2 GHz • Gold Plated Brass Contact
• Excellent VSWR of 1.23:1
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44320 75 ohm type F male right angle connector crimp/solder attachment for RG6-CATV is part of our full line
of RF components available for same-day shipping. Our type F male connector operates up to a maximum frequency of 2 GHz
and offers excellent VSWR of 1.23:1. Its right angle body geometry allows for easier connections in tight spaces.
Our 75 ohm type F male right angle connector PE44320 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 2 GHz
VSWR 1.23:1
.

Mechanical Specifications
Size
Length 0.87 in [22.1 mm]
Width/Dia. 0.438 in [11.13 mm]
Height 1 in [25.4 mm]
.
Weight 0.046 lbs [20.87 g]
.
Mating Torque 12 to 15 in-lbs [1.36 to 1.70 Nm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm F Male Right Angle Connector Crimp/Solder Attachment for RG6-CATV PE44320

PE44320 REV 1.1 1
