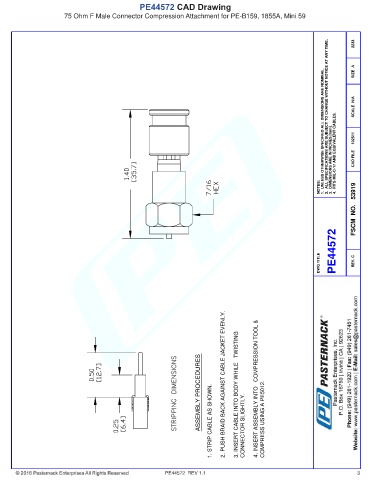

PE44572 CAD Drawing
75 Ohm F Male Connector Compression Attachment for PE-B159, 1855A, Mini 59
2233
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 102511 CAD FILE
NOTES:
FSCM NO. 53919
PE44572
DWG TITLE REV. C
ASSEMBLY PROCEDURES 1. STRIP CABLE AS SHOWN. 2. PUSH BRAID BACK AGAINST CABLE JACKET EVENLY. 3. INSERT CABLE INTO BODY WHILE TWISTING CONNECTOR SLIGHTLY. 4. INSERT ASSEMBLY INTO COMPRESSION TOOL & COMPRESS USING A PE5012.
PE44572 REV 1.1 3
