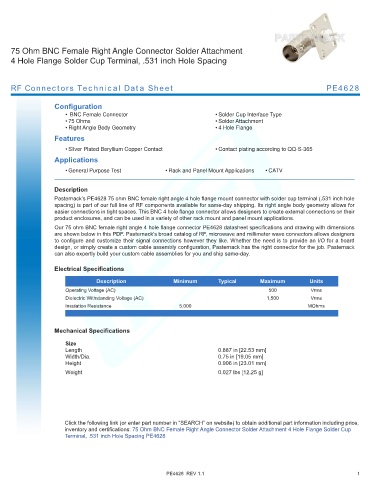

75 Ohm BNC Female Right Angle Connector Solder Attachment
4 Hole Flange Solder Cup Terminal, .531 inch Hole Spacing

RF Connectors Technical Data Sheet PE4628

Configuration
• BNC Female Connector • Solder Cup Interface Type
• 75 Ohms • Solder Attachment
• Right Angle Body Geometry • 4 Hole Flange
Features
• Silver Plated Beryllium Copper Contact • Contact plating according to QQ-S-365
Applications
• General Purpose Test • Rack and Panel Mount Applications • CATV
.
Description
Pasternack’s PE4628 75 ohm BNC female right angle 4 hole flange mount connector with solder cup terminal (.531 inch hole
spacing) is part of our full line of RF components available for same-day shipping. Its right angle body geometry allows for
easier connections in tight spaces. This BNC 4 hole flange connector allows designers to create external connections on their
product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our 75 ohm BNC female right angle 4 hole flange connector PE4628 datasheet specifications and drawing with dimensions
are shown below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers
to configure and customize their signal connections however they like. Whether the need is to provide an I/O for a board
design, or simply create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack
can also expertly build your custom cable assemblies for you and ship same-day.
Electrical Specifications

Description Minimum Typical Maximum Units
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Insulation Resistance 5,000 MOhms
.

Mechanical Specifications

Size
Length 0.887 in [22.53 mm]
Width/Dia. 0.75 in [19.05 mm]
Height 0.906 in [23.01 mm]
.
Weight 0.027 lbs [12.25 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm BNC Female Right Angle Connector Solder Attachment 4 Hole Flange Solder Cup
Terminal, .531 inch Hole Spacing PE4628

PE4628 REV 1.1 1
