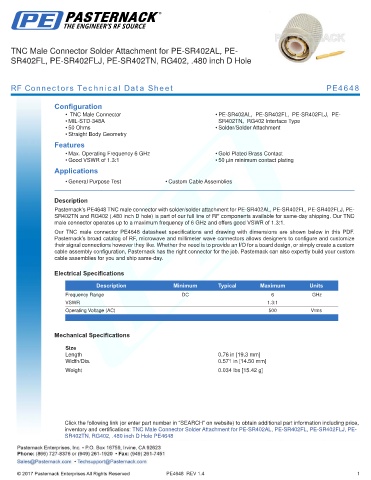

TNC Male Connector Solder Attachment for PE-SR402AL, PE-
SR402FL, PE-SR402FLJ, PE-SR402TN, RG402, .480 inch D Hole

RF Connectors Technical Data Sheet PE4648

Configuration
• TNC Male Connector • PE-SR402AL, PE-SR402FL, PE-SR402FLJ, PE-
• MIL-STD-348A SR402TN, RG402 Interface Type
• 50 Ohms • Solder/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 6 GHz • Gold Plated Brass Contact
• Good VSWR of 1.3:1 • 50 µin minimum contact plating
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4648 TNC male connector with solder/solder attachment for PE-SR402AL, PE-SR402FL, PE-SR402FLJ, PE-
SR402TN and RG402 (.480 inch D hole) is part of our full line of RF components available for same-day shipping. Our TNC
male connector operates up to a maximum frequency of 6 GHz and offers good VSWR of 1.3:1.
Our TNC male connector PE4648 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.3:1
Operating Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 0.76 in [19.3 mm]
Width/Dia. 0.571 in [14.50 mm]
.
Weight 0.034 lbs [15.42 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Connector Solder Attachment for PE-SR402AL, PE-SR402FL, PE-SR402FLJ, PE-
SR402TN, RG402, .480 inch D Hole PE4648

PE4648 REV 1.4 1
