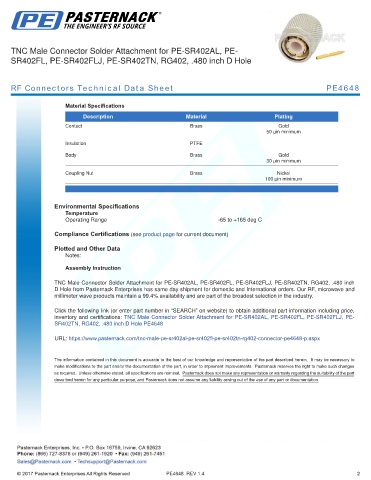

TNC Male Connector Solder Attachment for PE-SR402AL, PE-
SR402FL, PE-SR402FLJ, PE-SR402TN, RG402, .480 inch D Hole
RF Connectors Technical Data Sheet PE4648
Material Specifications
Description Material Plating
Contact Brass Gold
50 µin minimum
Insulation PTFE
Body Brass Gold
30 µin minimum
Coupling Nut Brass Nickel
100 µin minimum
.
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Assembly Instruction
TNC Male Connector Solder Attachment for PE-SR402AL, PE-SR402FL, PE-SR402FLJ, PE-SR402TN, RG402, .480 inch
D Hole from Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and
millimeter wave products maintain a 99.4% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Connector Solder Attachment for PE-SR402AL, PE-SR402FL, PE-SR402FLJ, PE-
SR402TN, RG402, .480 inch D Hole PE4648
URL: https://www.pasternack.com/tnc-male-pe-sr402al-pe-sr402fl-pe-sr402tn-rg402-connector-pe4648-p.aspx
PE4648 REV 1.4 2
