TNC Male Connector Solder Attachment For
PE-SR401AL, PE-SR401FL, RG401

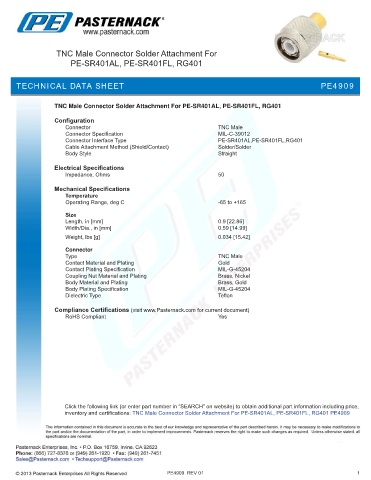

TECHNICAL DATA SHEET PE4909

TNC Male Connector Solder Attachment For PE-SR401AL, PE-SR401FL, RG401

Configuration
Connector TNC Male
Connector Specification MIL-C-39012
Connector Interface Type PE-SR401AL,PE-SR401FL,RG401
Cable Attachment Method (Shield/Contact) Solder/Solder
Body Style Straight

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165

Size
Length, in [mm] 0.9 [22.86]
Width/Dia., in [mm] 0.59 [14.99]
.
Weight, lbs [g] 0.034 [15.42]
Connector
Type TNC Male
Contact Material and Plating Gold
Contact Plating Specification MIL-G-45204
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Gold
Body Plating Specification MIL-G-45204
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Connector Solder Attachment For PE-SR401AL, PE-SR401FL, RG401 PE4909

PE4909 REV 01 1
