TNC Male Connector Solder Attachment For
PE-047SR, PE-SR047AL, PE-SR047FL

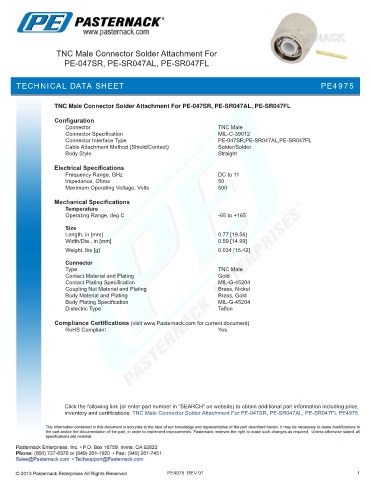

TECHNICAL DATA SHEET PE4975

TNC Male Connector Solder Attachment For PE-047SR, PE-SR047AL, PE-SR047FL

Configuration
Connector TNC Male
Connector Specification MIL-C-39012
Connector Interface Type PE-047SR,PE-SR047AL,PE-SR047FL
Cable Attachment Method (Shield/Contact) Solder/Solder
Body Style Straight

Electrical Specifications
Frequency Range, GHz DC to 11
Impedance, Ohms 50
Maximum Operating Voltage, Volts 500

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165
Size
Length, in [mm] 0.77 [19.56]
Width/Dia., in [mm] 0.59 [14.99]
.
Weight, lbs [g] 0.034 [15.42]
Connector
Type TNC Male
Contact Material and Plating Gold
Contact Plating Specification MIL-G-45204
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Gold
Body Plating Specification MIL-G-45204
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Connector Solder Attachment For PE-047SR, PE-SR047AL, PE-SR047FL PE4975

PE4975 REV 01 1
