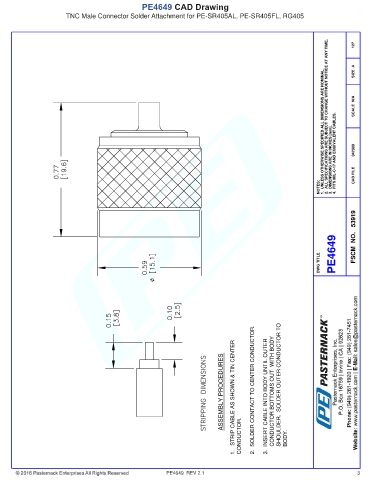

PE4649 CAD Drawing
TNC Male Connector Solder Attachment for PE-SR405AL, PE-SR405FL, RG405
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 042309
NOTES: CAD FILE
DWG TITLE PE4649 FSCM NO. 53919
ASSEMBLY PROCEDURES 1. STRIP CABLE AS SHOWN & TIN CENTER 2. SOLDER CONTACT TO CENTER CONDUCTOR. 3. INSERT CABLE INTO BODY UNTIL OUTER CONDUCTOR BOTTOMS OUT WITH BODY SHOULDER. SOLDER OUTER CONDUCTOR TO
CONDUCTOR. BODY.
PE4649 REV 2.1 3
