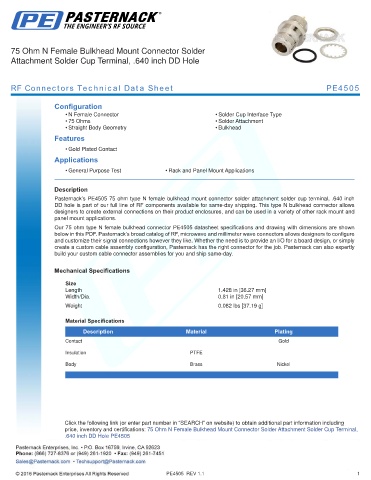

75 Ohm N Female Bulkhead Mount Connector Solder
Attachment Solder Cup Terminal, .640 inch DD Hole

RF Connectors Technical Data Sheet PE4505

Configuration
• N Female Connector • Solder Cup Interface Type
• 75 Ohms • Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Gold Plated Contact
Applications
• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4505 75 ohm type N female bulkhead mount connector solder attachment solder cup terminal, .640 inch
DD hole is part of our full line of RF components available for same-day shipping. This type N bulkhead connector allows
designers to create external connections on their product enclosures, and can be used in a variety of other rack mount and
panel mount applications.
Our 75 ohm type N female bulkhead connector PE4505 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.428 in [36.27 mm]
Width/Dia. 0.81 in [20.57 mm]
.
Weight 0.082 lbs [37.19 g]
.
Material Specifications

Description Material Plating
Contact Gold
Insulation PTFE
Body Brass Nickel

.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: 75 Ohm N Female Bulkhead Mount Connector Solder Attachment Solder Cup Terminal,
.640 inch DD Hole PE4505

PE4505 REV 1.1 1
