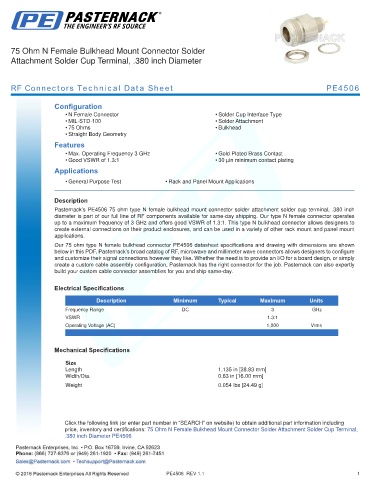

75 Ohm N Female Bulkhead Mount Connector Solder
Attachment Solder Cup Terminal, .380 inch Diameter

RF Connectors Technical Data Sheet PE4506

Configuration
• N Female Connector • Solder Cup Interface Type
• MIL-STD-100 • Solder Attachment
• 75 Ohms • Bulkhead
• Straight Body Geometry
Features
• Max. Operating Frequency 3 GHz • Gold Plated Brass Contact
• Good VSWR of 1.3:1 • 30 µin minimum contact plating
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4506 75 ohm type N female bulkhead mount connector solder attachment solder cup terminal, .380 inch
diameter is part of our full line of RF components available for same-day shipping. Our type N female connector operates
up to a maximum frequency of 3 GHz and offers good VSWR of 1.3:1. This type N bulkhead connector allows designers to
create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
Our 75 ohm type N female bulkhead connector PE4506 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.3:1
Operating Voltage (AC) 1,000 Vrms
.

Mechanical Specifications

Size
Length 1.135 in [28.83 mm]
Width/Dia. 0.63 in [16.00 mm]
.
Weight 0.054 lbs [24.49 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: 75 Ohm N Female Bulkhead Mount Connector Solder Attachment Solder Cup Terminal,
.380 inch Diameter PE4506

PE4506 REV 1.1 1
