75 Ohm N Female Connector Solder Attachment 4 Hole
Flange Mount Solder Cup Terminal, .718 inch Hole Spacing

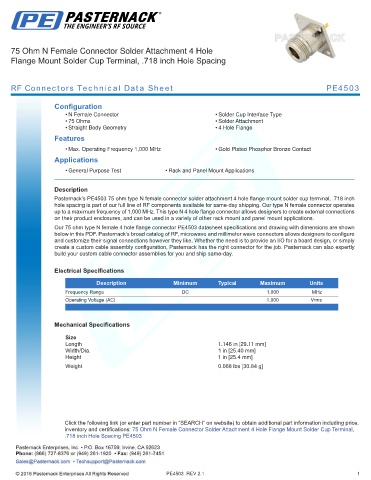

RF Connectors Technical Data Sheet PE4503

Configuration
• N Female Connector • Solder Cup Interface Type
• 75 Ohms • Solder Attachment
• Straight Body Geometry • 4 Hole Flange
Features
• Max. Operating Frequency 1,000 MHz • Gold Plated Phosphor Bronze Contact
Applications
• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4503 75 ohm type N female connector solder attachment 4 hole flange mount solder cup terminal, .718 inch
hole spacing is part of our full line of RF components available for same-day shipping. Our type N female connector operates
up to a maximum frequency of 1,000 MHz. This type N 4 hole flange connector allows designers to create external connections
on their product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our 75 ohm type N female 4 hole flange connector PE4503 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
Operating Voltage (AC) 1,000 Vrms
.

Mechanical Specifications

Size
Length 1.146 in [29.11 mm]
Width/Dia. 1 in [25.40 mm]
Height 1 in [25.4 mm]
.
Weight 0.068 lbs [30.84 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Female Connector Solder Attachment 4 Hole Flange Mount Solder Cup Terminal,
.718 inch Hole Spacing PE4503
