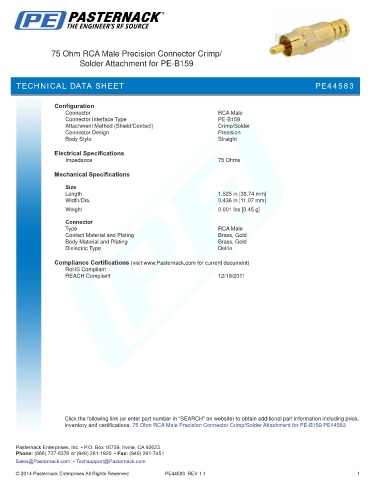

75 Ohm RCA Male Precision Connector Crimp/
Solder Attachment for PE-B159
TECHNICAL DATA SHEET PE44583
Configuration
Connector RCA Male
Connector Interface Type PE-B159
Attachment Method (Shield/Contact) Crimp/Solder
Connector Design Precision
Body Style Straight
Electrical Specifications
Impedance 75 Ohms
Mechanical Specifications
Size
Length 1.525 in [38.74 mm]
Width/Dia. 0.436 in [11.07 mm]
.
Weight 0.001 lbs [0.45 g]
Connector
Type RCA Male
Contact Material and Plating Brass, Gold
Body Material and Plating Brass, Gold
Dielectric Type Delrin
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 12/19/2011
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm RCA Male Precision Connector Crimp/Solder Attachment for PE-B159 PE44583
PE44583 REV 1.1 1
