75 Ohm RCA Male Connector Crimp/Solder
Attachment For Mini 59, PE-B159

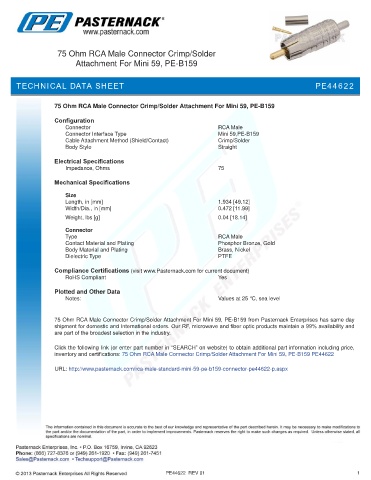

TECHNICAL DATA SHEET PE44622

75 Ohm RCA Male Connector Crimp/Solder Attachment For Mini 59, PE-B159

Configuration
Connector RCA Male
Connector Interface Type Mini 59,PE-B159
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight
Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications

Size
Length, in [mm] 1.934 [49.12]
Width/Dia., in [mm] 0.472 [11.99]
.
Weight, lbs [g] 0.04 [18.14]

Connector
Type RCA Male
Contact Material and Plating Phosphor Bronze, Gold
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

75 Ohm RCA Male Connector Crimp/Solder Attachment For Mini 59, PE-B159 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm RCA Male Connector Crimp/Solder Attachment For Mini 59, PE-B159 PE44622

URL: http://www.pasternack.com/rca-male-standard-mini-59-pe-b159-connector-pe44622-p.aspx

PE44622 REV 01 1
