75 Ohm RCA Male Connector Crimp/Solder Attachment For 1505A

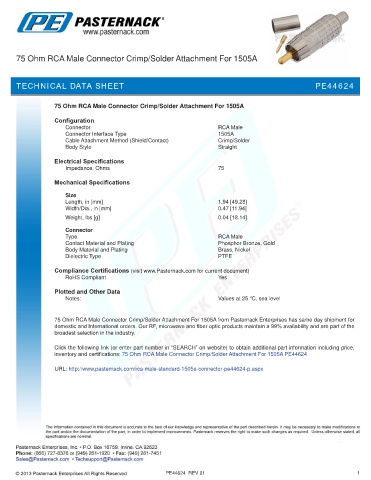

TECHNICAL DATA SHEET PE44624

75 Ohm RCA Male Connector Crimp/Solder Attachment For 1505A

Configuration
Connector RCA Male
Connector Interface Type 1505A
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight
Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications

Size
Length, in [mm] 1.94 [49.28]
Width/Dia., in [mm] 0.47 [11.94]
.
Weight, lbs [g] 0.04 [18.14]

Connector
Type RCA Male
Contact Material and Plating Phosphor Bronze, Gold
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

75 Ohm RCA Male Connector Crimp/Solder Attachment For 1505A from Pasternack Enterprises has same day shipment for
domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the
broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm RCA Male Connector Crimp/Solder Attachment For 1505A PE44624

URL: http://www.pasternack.com/rca-male-standard-1505a-connector-pe44624-p.aspx

PE44624 REV 01 1
