75 Ohm RCA Male Connector Compression
Attachment For Mini 59, PE-B159

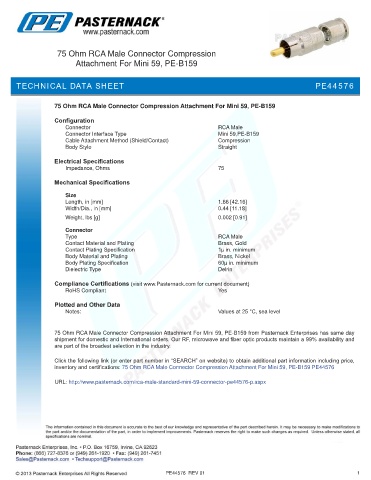

TECHNICAL DATA SHEET PE44576

75 Ohm RCA Male Connector Compression Attachment For Mini 59, PE-B159

Configuration
Connector RCA Male
Connector Interface Type Mini 59,PE-B159
Cable Attachment Method (Shield/Contact) Compression
Body Style Straight
Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications

Size
Length, in [mm] 1.66 [42.16]
Width/Dia., in [mm] 0.44 [11.18]
.
Weight, lbs [g] 0.002 [0.91]

Connector
Type RCA Male
Contact Material and Plating Brass, Gold
Contact Plating Specification 1µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 60µ in. minimum
Dielectric Type Delrin

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level
