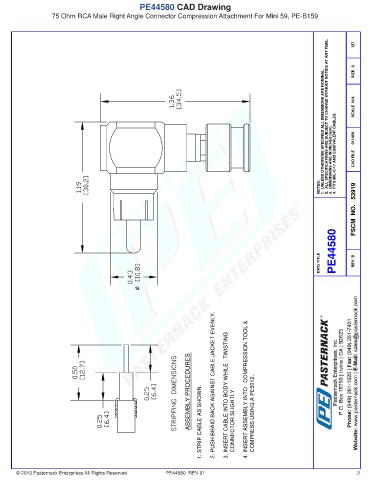

PE44580 CAD Drawing
75 Ohm RCA Male Right Angle Connector Compression Attachment For Mini 59, PE-B159

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 011409 CAD FILE

NOTES:
FSCM NO. 53919

PE44580

DWG TITLE REV. B

ASSEMBLY PROCEDURES 1. STRIP CABLE AS SHOWN. 2. PUSH BRAID BACK AGAINST CABLE JACKET EVENLY. 3. INSERT CABLE INTO BODY WHILE TWISTING CONNECTOR SLIGHTLY. 4. INSERT ASSEMBLY INTO COMPRESSION TOOL & COMPRESS USING A PE5012.

© 2013 Pasternack Enterprises All Rights Reserved PE44580 REV 01 2
