75 Ohm RCA Male Right Angle Connector
Compression Attachment For Mini 59, PE-B159

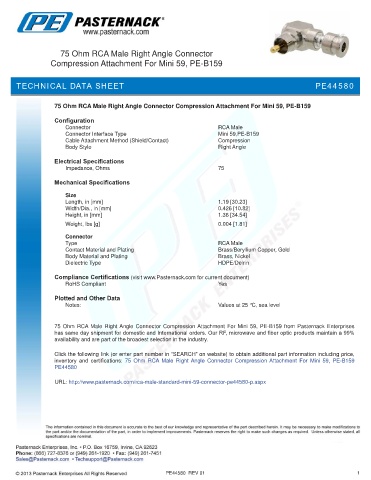

TECHNICAL DATA SHEET PE44580

75 Ohm RCA Male Right Angle Connector Compression Attachment For Mini 59, PE-B159

Configuration
Connector RCA Male
Connector Interface Type Mini 59,PE-B159
Cable Attachment Method (Shield/Contact) Compression
Body Style Right Angle
Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications

Size
Length, in [mm] 1.19 [30.23]
Width/Dia., in [mm] 0.426 [10.82]
Height, in [mm] 1.36 [34.54]
.
Weight, lbs [g] 0.004 [1.81]
Connector
Type RCA Male
Contact Material and Plating Brass/Beryllium Copper, Gold
Body Material and Plating Brass, Nickel
Dielectric Type HDPE/Delrin

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

75 Ohm RCA Male Right Angle Connector Compression Attachment For Mini 59, PE-B159 from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm RCA Male Right Angle Connector Compression Attachment For Mini 59, PE-B159
PE44580
