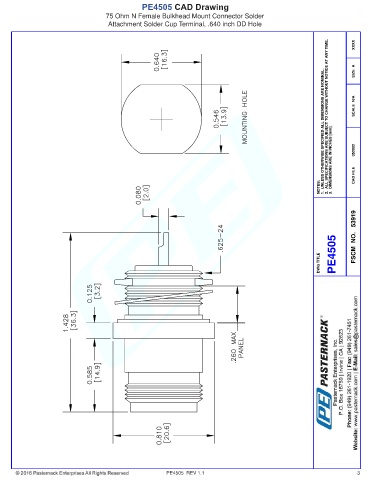

PE4505 CAD Drawing
75 Ohm N Female Bulkhead Mount Connector Solder
Attachment Solder Cup Terminal, .640 inch DD Hole
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 052002
NOTES: CAD FILE
DWG TITLE PE4505 FSCM NO. 53919
PE4505 REV 1.1 3
