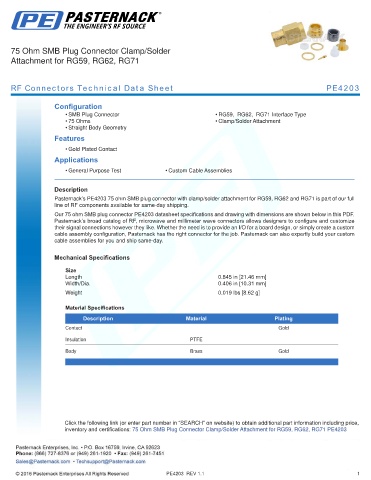

75 Ohm SMB Plug Connector Clamp/Solder
Attachment for RG59, RG62, RG71

RF Connectors Technical Data Sheet PE4203

Configuration
• SMB Plug Connector • RG59, RG62, RG71 Interface Type
• 75 Ohms • Clamp/Solder Attachment
• Straight Body Geometry
Features
• Gold Plated Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4203 75 ohm SMB plug connector with clamp/solder attachment for RG59, RG62 and RG71 is part of our full
line of RF components available for same-day shipping.
Our 75 ohm SMB plug connector PE4203 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 0.845 in [21.46 mm]
Width/Dia. 0.406 in [10.31 mm]
.
Weight 0.019 lbs [8.62 g]
.
Material Specifications
Description Material Plating
Contact Gold
Insulation PTFE

Body Brass Gold
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMB Plug Connector Clamp/Solder Attachment for RG59, RG62, RG71 PE4203

PE4203 REV 1.1 1
