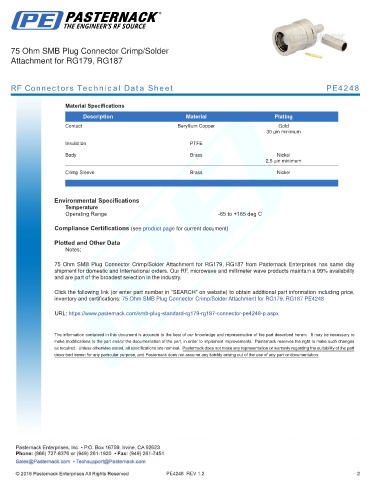

75 Ohm SMB Plug Connector Crimp/Solder
Attachment for RG179, RG187

RF Connectors Technical Data Sheet PE4248

Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
30 µin minimum

Insulation PTFE
Body Brass Nickel
2.5 µin minimum

Crimp Sleeve Brass Nickel
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

75 Ohm SMB Plug Connector Crimp/Solder Attachment for RG179, RG187 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMB Plug Connector Crimp/Solder Attachment for RG179, RG187 PE4248

URL: https://www.pasternack.com/smb-plug-standard-rg179-rg187-connector-pe4248-p.aspx

PE4248 REV 1.2 2
