75 Ohm SMB Plug Connector Crimp/Solder
Attachment for RG179, RG187

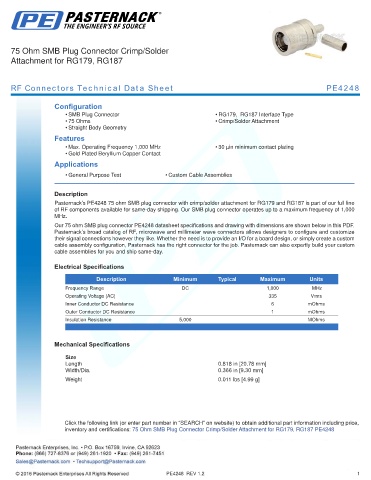

RF Connectors Technical Data Sheet PE4248

Configuration
• SMB Plug Connector • RG179, RG187 Interface Type
• 75 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 1,000 MHz • 30 µin minimum contact plating
• Gold Plated Beryllium Copper Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4248 75 ohm SMB plug connector with crimp/solder attachment for RG179 and RG187 is part of our full line
of RF components available for same-day shipping. Our SMB plug connector operates up to a maximum frequency of 1,000
MHz.
Our 75 ohm SMB plug connector PE4248 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
Operating Voltage (AC) 335 Vrms
Inner Conductor DC Resistance 6 mOhms
Outer Conductor DC Resistance 1 mOhms
Insulation Resistance 5,000 MOhms
.

Mechanical Specifications

Size
Length 0.818 in [20.78 mm]
Width/Dia. 0.366 in [9.30 mm]
.
Weight 0.011 lbs [4.99 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMB Plug Connector Crimp/Solder Attachment for RG179, RG187 PE4248

PE4248 REV 1.2 1
