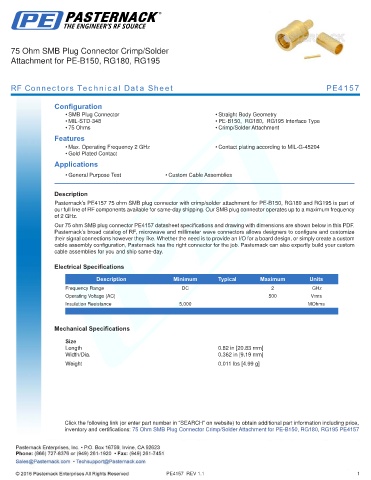

75 Ohm SMB Plug Connector Crimp/Solder
Attachment for PE-B150, RG180, RG195

RF Connectors Technical Data Sheet PE4157

Configuration
• SMB Plug Connector • Straight Body Geometry
• MIL-STD-348 • PE-B150, RG180, RG195 Interface Type
• 75 Ohms • Crimp/Solder Attachment
Features
• Max. Operating Frequency 2 GHz • Contact plating according to MIL-G-45204
• Gold Plated Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4157 75 ohm SMB plug connector with crimp/solder attachment for PE-B150, RG180 and RG195 is part of
our full line of RF components available for same-day shipping. Our SMB plug connector operates up to a maximum frequency
of 2 GHz.
Our 75 ohm SMB plug connector PE4157 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 2 GHz
Operating Voltage (AC) 500 Vrms
Insulation Resistance 5,000 MOhms
.

Mechanical Specifications

Size
Length 0.82 in [20.83 mm]
Width/Dia. 0.362 in [9.19 mm]
.
Weight 0.011 lbs [4.99 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMB Plug Connector Crimp/Solder Attachment for PE-B150, RG180, RG195 PE4157

PE4157 REV 1.1 1
