75 Ohm SMB Plug Connector Solder Attachment Thru
Hole PCB, .200 inch x .067 inch Hole Spacing

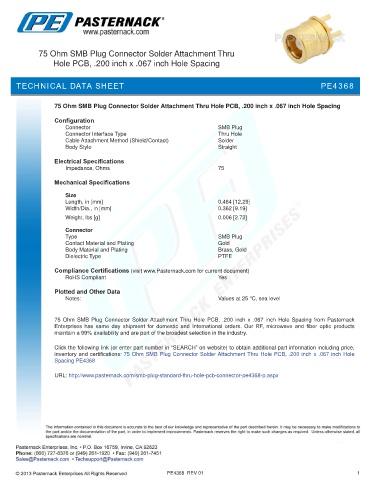

TECHNICAL DATA SHEET PE4368

75 Ohm SMB Plug Connector Solder Attachment Thru Hole PCB, .200 inch x .067 inch Hole Spacing

Configuration
Connector SMB Plug
Connector Interface Type Thru Hole
Cable Attachment Method (Shield/Contact) Solder
Body Style Straight
Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications

Size
Length, in [mm] 0.484 [12.29]
Width/Dia., in [mm] 0.362 [9.19]
.
Weight, lbs [g] 0.006 [2.72]

Connector
Type SMB Plug
Contact Material and Plating Gold
Body Material and Plating Brass, Gold
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

75 Ohm SMB Plug Connector Solder Attachment Thru Hole PCB, .200 inch x .067 inch Hole Spacing from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products
maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMB Plug Connector Solder Attachment Thru Hole PCB, .200 inch x .067 inch Hole
Spacing PE4368

URL: http://www.pasternack.com/smb-plug-standard-thru-hole-pcb-connector-pe4368-p.aspx

PE4368 REV 01 1
