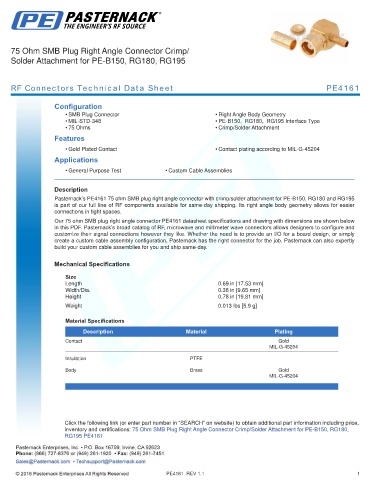

75 Ohm SMB Plug Right Angle Connector Crimp/
Solder Attachment for PE-B150, RG180, RG195

RF Connectors Technical Data Sheet PE4161

Configuration
• SMB Plug Connector • Right Angle Body Geometry
• MIL-STD-348 • PE-B150, RG180, RG195 Interface Type
• 75 Ohms • Crimp/Solder Attachment
Features
• Gold Plated Contact • Contact plating according to MIL-G-45204
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4161 75 ohm SMB plug right angle connector with crimp/solder attachment for PE-B150, RG180 and RG195
is part of our full line of RF components available for same-day shipping. Its right angle body geometry allows for easier
connections in tight spaces.
Our 75 ohm SMB plug right angle connector PE4161 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 0.69 in [17.53 mm]
Width/Dia. 0.38 in [9.65 mm]
Height 0.78 in [19.81 mm]
.
Weight 0.013 lbs [5.9 g]
.
Material Specifications

Description Material Plating
Contact Gold
MIL-G-45204
Insulation PTFE

Body Brass Gold
MIL-G-45204
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMB Plug Right Angle Connector Crimp/Solder Attachment for PE-B150, RG180,
RG195 PE4161

PE4161 REV 1.1 1
