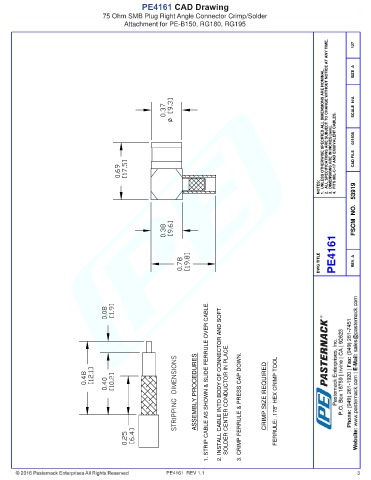

PE4161 CAD Drawing
75 Ohm SMB Plug Right Angle Connector Crimp/Solder
Attachment for PE-B150, RG180, RG195

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 021508 CAD FILE

NOTES:
FSCM NO. 53919

DWG TITLE PE4161 REV. A

ASSEMBLY PROCEDURES 1. STRIP CABLE AS SHOWN & SLIDE FERRULE OVER CABLE. 2. INSTALL CABLE INTO BODY OF CONNECTOR AND SOFT SOLDER CENTER CONDUCTOR IN PLACE. 3. CRIMP FERRULE & PRESS CAP DOWN. CRIMP SIZE REQUIRED FERRULE: .178" HEX CRIMP TOOL

PE4161 REV 1.1 3
