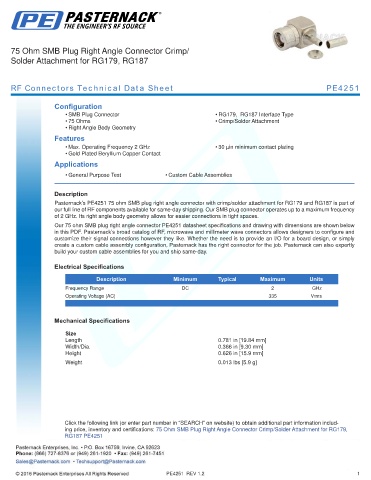

75 Ohm SMB Plug Right Angle Connector Crimp/
Solder Attachment for RG179, RG187

RF Connectors Technical Data Sheet PE4251

Configuration
• SMB Plug Connector • RG179, RG187 Interface Type
• 75 Ohms • Crimp/Solder Attachment
• Right Angle Body Geometry
Features
• Max. Operating Frequency 2 GHz • 30 µin minimum contact plating
• Gold Plated Beryllium Copper Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4251 75 ohm SMB plug right angle connector with crimp/solder attachment for RG179 and RG187 is part of
our full line of RF components available for same-day shipping. Our SMB plug connector operates up to a maximum frequency
of 2 GHz. Its right angle body geometry allows for easier connections in tight spaces.
Our 75 ohm SMB plug right angle connector PE4251 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 2 GHz
Operating Voltage (AC) 335 Vrms
.

Mechanical Specifications

Size
Length 0.781 in [19.84 mm]
Width/Dia. 0.366 in [9.30 mm]
Height 0.626 in [15.9 mm]
.
Weight 0.013 lbs [5.9 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information includ-
ing price, inventory and certifications: 75 Ohm SMB Plug Right Angle Connector Crimp/Solder Attachment for RG179,
RG187 PE4251

PE4251 REV 1.2 1
