75 Ohm SMB Plug Right Angle Connector Clamp/
Solder Attachment For RG59, RG62

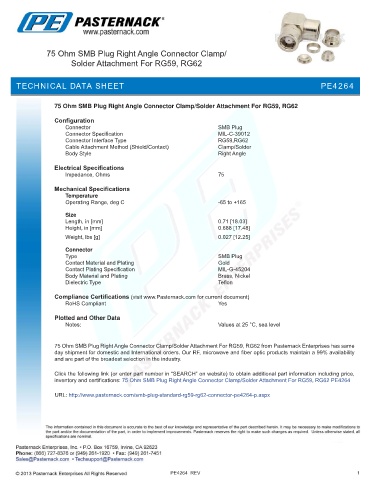

TECHNICAL DATA SHEET PE4264

75 Ohm SMB Plug Right Angle Connector Clamp/Solder Attachment For RG59, RG62

Configuration
Connector SMB Plug
Connector Specification MIL-C-39012
Connector Interface Type RG59,RG62
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Right Angle

Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications
Temperature
Operating Range, deg C -65 to +165

Size
Length, in [mm] 0.71 [18.03]
Height, in [mm] 0.688 [17.48]
.
Weight, lbs [g] 0.027 [12.25]
Connector
Type SMB Plug
Contact Material and Plating Gold
Contact Plating Specification MIL-G-45204
Body Material and Plating Brass, Nickel
Dielectric Type Teflon
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

75 Ohm SMB Plug Right Angle Connector Clamp/Solder Attachment For RG59, RG62 from Pasternack Enterprises has same
day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMB Plug Right Angle Connector Clamp/Solder Attachment For RG59, RG62 PE4264

URL: http://www.pasternack.com/smb-plug-standard-rg59-rg62-connector-pe4264-p.aspx

PE4264 REV 1
