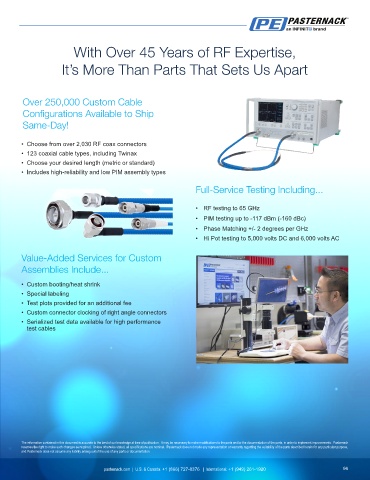

With Over 45 Years of RF Expertise,

It’s More Than Parts That Sets Us Apart

Over 250,000 Custom Cable

Configurations Available to Ship
Same-Day!

• Choose from over 2,030 RF coax connectors
• 123 coaxial cable types, including Twinax
• Choose your desired length (metric or standard)
• Includes high-reliability and low PIM assembly types

Full-Service Testing Including...

• RF testing to 65 GHz
• PIM testing up to -117 dBm (-160 dBc)
• Phase Matching +/- 2 degrees per GHz
• Hi Pot testing to 5,000 volts DC and 6,000 volts AC

Value-Added Services for Custom
Assemblies Include...

• Custom booting/heat shrink
• Special labeling
• Test plots provided for an additional fee
• Custom connector clocking of right angle connectors
• Serialized test data available for high performance
test cables

The information contained in this document is accurate to the best of our knowledge at time of publication. It may be necessary to make modifications to the parts and/or the documentation of the parts, in order to implement improvements. Pasternack
reserves the right to make such changes as required. Unless otherwise stated, all specifications are nominal. Pasternack does not make any representation or warranty regarding the suitability of the parts described herein for any particular purpose,
and Pasternack does not assume any liability arising out of the use of any parts or documentation.
