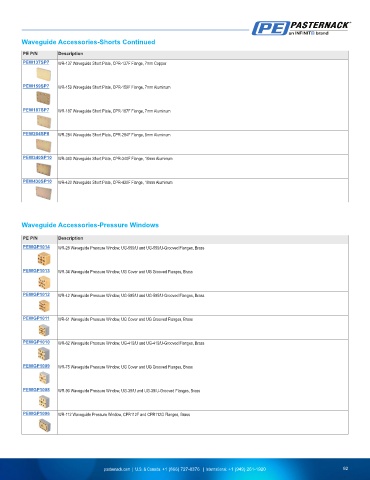

Waveguide Accessories-Shorts Continued
PE P/N Description
PEW137SP7 WR-137 Waveguide Short Plate, CPR-137F Flange, 7mm Copper

PEW159SP7 WR-159 Waveguide Short Plate, CPR-159F Flange, 7mm Aluminum

PEW187SP7 WR-187 Waveguide Short Plate, CPR-187F Flange, 7mm Aluminum

PEW284SP8 WR-284 Waveguide Short Plate, CPR-284F Flange, 8mm Aluminum

PEW340SP10 WR-340 Waveguide Short Plate, CPR-340F Flange, 10mm Aluminum

PEW430SP10 WR-430 Waveguide Short Plate, CPR-430F Flange, 10mm Aluminum

Waveguide Accessories-Pressure Windows

PE P/N Description
PEWGP1014 WR-28 Waveguide Pressure Window, UG-599/U and UG-599/U-Grooved Flanges, Brass

PEWGP1013 WR-34 Waveguide Pressure Window, UG Cover and UG Grooved Flanges, Brass

PEWGP1012 WR-42 Waveguide Pressure Window, UG-595/U and UG-595/U-Grooved Flanges, Brass

PEWGP1011 WR-51 Waveguide Pressure Window, UG Cover and UG Grooved Flanges, Brass

PEWGP1010 WR-62 Waveguide Pressure Window, UG-419/U and UG-419/U-Grooved Flanges, Brass

PEWGP1009 WR-75 Waveguide Pressure Window, UG Cover and UG Grooved Flanges, Brass

PEWGP1008 WR-90 Waveguide Pressure Window, UG-39/U and UG-39/U-Grooved Flanges, Brass

PEWGP1006 WR-112 Waveguide Pressure Window, CPR112F and CPR112G Flanges, Brass
