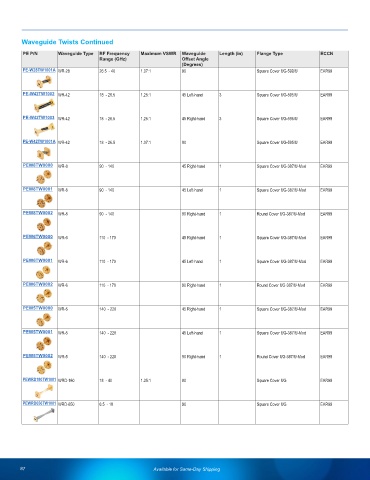

Waveguide Twists Continued
PE P/N Waveguide Type RF Frequency Maximum VSWR Waveguide Length (in) Flange Type ECCN
Range (GHz) Offset Angle
(Degrees)
PE-W28TW1001A WR-28 26.5 - 40 1.07:1 90 Square Cover UG-599/U EAR99
PE-W42TW1002 WR-42 18 - 26.5 1.25:1 45 Left-hand 3 Square Cover UG-595/U EAR99
PE-W42TW1003 WR-42 18 - 26.5 1.25:1 45 Right-hand 3 Square Cover UG-595/U EAR99
PE-W42TW1001A WR-42 18 - 26.5 1.07:1 90 Square Cover UG-595/U EAR99
PEW8TW0000 WR-8 90 - 140 45 Right-hand 1 Square Cover UG-387/U-Mod EAR99
PEW8TW0001 WR-8 90 - 140 45 Left-hand 1 Square Cover UG-387/U-Mod EAR99
PEW8TW0002 WR-8 90 - 140 90 Right-hand 1 Round Cover UG-387/U-Mod EAR99
PEW6TW0000 WR-6 110 - 170 45 Right-hand 1 Square Cover UG-387/U-Mod EAR99
PEW6TW0001 WR-6 110 - 170 45 Left-hand 1 Square Cover UG-387/U-Mod EAR99
PEW6TW0002 WR-6 110 - 170 90 Right-hand 1 Round Cover UG-387/U-Mod EAR99
PEW5TW0000 WR-5 140 - 220 45 Right-hand 1 Square Cover UG-387/U-Mod EAR99
PEW5TW0001 WR-5 140 - 220 45 Left-hand 1 Square Cover UG-387/U-Mod EAR99
PEW5TW0002 WR-5 140 - 220 90 Right-hand 1 Round Cover UG-387/U-Mod EAR99
PEWRD180TW1001 WRD-180 18 - 40 1.35:1 90 Square Cover UG EAR99
PEWRD650TW1001 WRD-650 6.5 - 18 90 Square Cover UG EAR99
