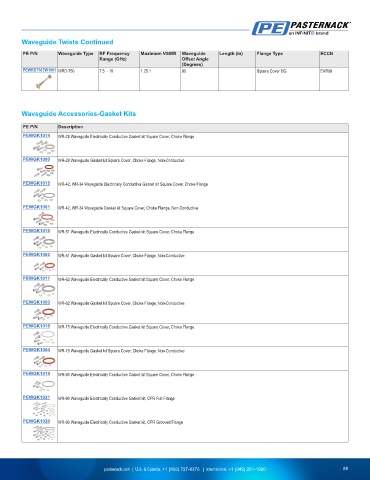

Page 89 - Waveguides Product Selection Guide
P. 89
Waveguide Twists Continued
PE P/N Waveguide Type RF Frequency Maximum VSWR Waveguide Length (in) Flange Type ECCN
Range (GHz) Offset Angle
(Degrees)
PEWRD750TW1001 WRD-750 7.5 - 18 1.25:1 90 Square Cover UG EAR99
Waveguide Accessories-Gasket Kits
PE P/N Description
PEWGK1014 WR-28 Waveguide Electrically Conductive Gasket kit Square Cover, Choke Flange
PEWGK1000 WR-28 Waveguide Gasket kit Square Cover, Choke Flange, Non-Conductive
PEWGK1015 WR-42, WR-34 Waveguide Electrically Conductive Gasket kit Square Cover, Choke Flange
PEWGK1001 WR-42, WR-34 Waveguide Gasket kit Square Cover, Choke Flange, Non-Conductive
PEWGK1016 WR-51 Waveguide Electrically Conductive Gasket kit Square Cover, Choke Flange
PEWGK1002 WR-51 Waveguide Gasket kit Square Cover, Choke Flange, Non-Conductive
PEWGK1017 WR-62 Waveguide Electrically Conductive Gasket kit Square Cover, Choke Flange
PEWGK1003 WR-62 Waveguide Gasket kit Square Cover, Choke Flange, Non-Conductive
PEWGK1018 WR-75 Waveguide Electrically Conductive Gasket kit Square Cover, Choke Flange
PEWGK1004 WR-75 Waveguide Gasket kit Square Cover, Choke Flange, Non-Conductive
PEWGK1019 WR-90 Waveguide Electrically Conductive Gasket kit Square Cover, Choke Flange
PEWGK1021 WR-90 Waveguide Electrically Conductive Gasket kit, CPR Flat Flange
PEWGK1020 WR-90 Waveguide Electrically Conductive Gasket kit, CPR Grooved Flange
