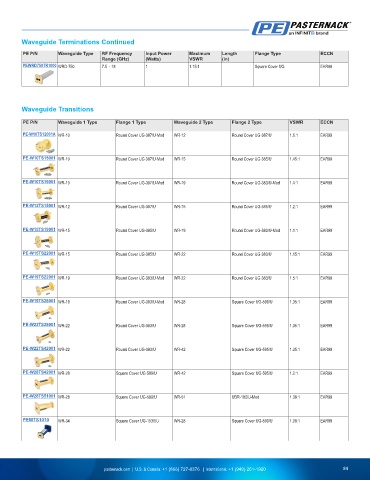

Page 85 - Waveguides Product Selection Guide
P. 85
Waveguide Terminations Continued
PE P/N Waveguide Type RF Frequency Input Power Maximum Length Flange Type ECCN
Range (GHz) (Watts) VSWR (in)
PEWRD750TR1000 WRD-750 7.5 - 18 1 1.15:1 Square Cover UG EAR99
Waveguide Transitions
PE P/N Waveguide 1 Type Flange 1 Type Waveguide 2 Type Flange 2 Type VSWR ECCN
PE-W10TS12001A WR-10 Round Cover UG-387/U-Mod WR-12 Round Cover UG-387/U 1.6:1 EAR99
PE-W10TS15001 WR-10 Round Cover UG-387/U-Mod WR-15 Round Cover UG-385/U 1.45:1 EAR99
PE-W10TS19001 WR-10 Round Cover UG-387/U-Mod WR-19 Round Cover UG-383/U-Mod 1.4:1 EAR99
PE-W12TS15001 WR-12 Round Cover UG-387/U WR-15 Round Cover UG-385/U 1.2:1 EAR99
PE-W15TS19001 WR-15 Round Cover UG-385/U WR-19 Round Cover UG-383/U-Mod 1.1:1 EAR99
PE-W15TS22001 WR-15 Round Cover UG-385/U WR-22 Round Cover UG-383/U 1.15:1 EAR99
PE-W19TS22001 WR-19 Round Cover UG-383/U-Mod WR-22 Round Cover UG-383/U 1.5:1 EAR99
PE-W19TS28001 WR-19 Round Cover UG-383/U-Mod WR-28 Square Cover UG-599/U 1.35:1 EAR99
PE-W22TS28001 WR-22 Round Cover UG-383/U WR-28 Square Cover UG-599/U 1.35:1 EAR99
PE-W22TS42001 WR-22 Round Cover UG-383/U WR-42 Square Cover UG-595/U 1.35:1 EAR99
PE-W28TS42001 WR-28 Square Cover UG-599/U WR-42 Square Cover UG-595/U 1.2:1 EAR99
PE-W28TS51001 WR-28 Square Cover UG-599/U WR-51 UBR-180/U-Mod 1.38:1 EAR99
PEWTS1010 WR-34 Square Cover UG-1530/U WR-28 Square Cover UG-599/U 1.08:1 EAR99
