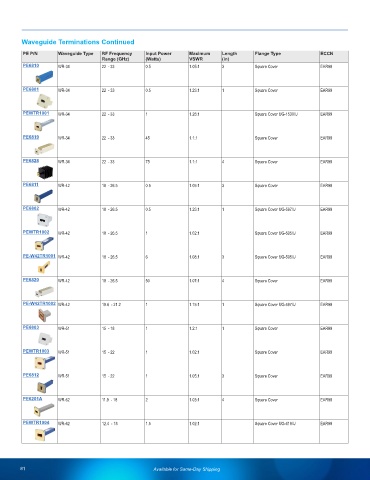

Page 82 - Waveguides Product Selection Guide
P. 82
Waveguide Terminations Continued
PE P/N Waveguide Type RF Frequency Input Power Maximum Length Flange Type ECCN
Range (GHz) (Watts) VSWR (in)
PE6810 WR-34 22 - 33 0.5 1.05:1 3 Square Cover EAR99
PE6801 WR-34 22 - 33 0.5 1.25:1 1 Square Cover EAR99
PEWTR1001 WR-34 22 - 33 1 1.25:1 Square Cover UG-1530/U EAR99
PE6819 WR-34 22 - 33 45 1.1:1 Square Cover EAR99
PE6828 WR-34 22 - 33 75 1.1:1 4 Square Cover EAR99
PE6811 WR-42 18 - 26.5 0.5 1.05:1 3 Square Cover EAR99
PE6802 WR-42 18 - 26.5 0.5 1.25:1 1 Square Cover UG-597/U EAR99
PEWTR1002 WR-42 18 - 26.5 1 1.02:1 Square Cover UG-595/U EAR99
PE-W42TR1001 WR-42 18 - 26.5 6 1.08:1 3 Square Cover UG-595/U EAR99
PE6820 WR-42 18 - 26.5 50 1.07:1 4 Square Cover EAR99
PE-W42TR1002 WR-42 19.6 - 21.2 1 1.15:1 1 Square Cover UG-597/U EAR99
PE6803 WR-51 15 - 18 1 1.2:1 1 Square Cover EAR99
PEWTR1003 WR-51 15 - 22 1 1.02:1 Square Cover EAR99
PE6812 WR-51 15 - 22 1 1.05:1 3 Square Cover EAR99
PE6201A WR-62 11.9 - 18 2 1.03:1 4 Square Cover EAR99
PEWTR1004 WR-62 12.4 - 18 1.5 1.02:1 Square Cover UG-419/U EAR99
81 Available for Same-Day Shipping
