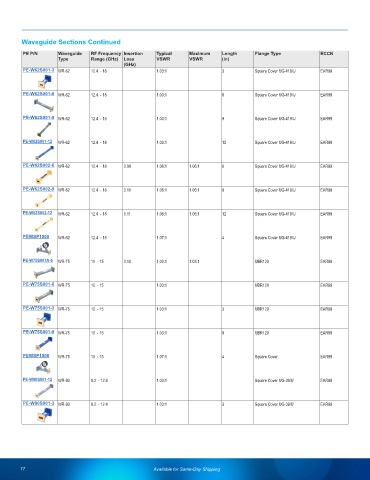

Page 78 - Waveguides Product Selection Guide
P. 78
Waveguide Sections Continued
PE P/N Waveguide RF Frequency Insertion Typical Maximum Length Flange Type ECCN
Type Range (GHz) Loss VSWR VSWR (in)
(GHz)
PE-W62S001-3 WR-62 12.4 - 18 1.03:1 3 Square Cover UG-419/U EAR99
PE-W62S001-6 WR-62 12.4 - 18 1.03:1 6 Square Cover UG-419/U EAR99
PE-W62S001-9 WR-62 12.4 - 18 1.03:1 9 Square Cover UG-419/U EAR99
PE-W62S001-12 WR-62 12.4 - 18 1.03:1 12 Square Cover UG-419/U EAR99
PE-W62S002-6 WR-62 12.4 - 18 0.08 1.06:1 1.06:1 6 Square Cover UG-419/U EAR99
PE-W62S002-9 WR-62 12.4 - 18 0.10 1.06:1 1.06:1 9 Square Cover UG-419/U EAR99
PE-W62S002-12 WR-62 12.4 - 18 0.11 1.06:1 1.06:1 12 Square Cover UG-419/U EAR99
PEWSP1005 WR-62 12.4 - 18 1.07:1 4 Square Cover UG-419/U EAR99
PE-W75S001A-6 WR-75 10 - 15 0.10 1.03:1 1.03:1 UBR120 EAR99
PE-W75S001-6 WR-75 10 - 15 1.03:1 UBR120 EAR99
PE-W75S001-3 WR-75 10 - 15 1.03:1 3 UBR120 EAR99
PE-W75S001-9 WR-75 10 - 15 1.03:1 9 UBR120 EAR99
PEWSP1006 WR-75 10 - 15 1.07:1 4 Square Cover EAR99
PE-W90S001-12 WR-90 8.2 - 12.4 1.03:1 Square Cover UG-39/U EAR99
PE-W90S001-3 WR-90 8.2 - 12.4 1.03:1 3 Square Cover UG-39/U EAR99
77 Available for Same-Day Shipping
