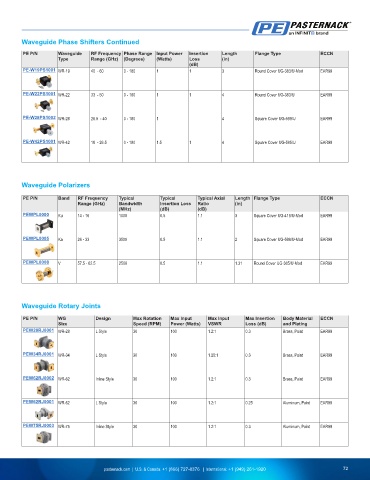

Waveguide Phase Shifters Continued
PE P/N Waveguide RF Frequency Phase Range Input Power Insertion Length Flange Type ECCN
Type Range (GHz) (Degrees) (Watts) Loss (in)
(dB)
PE-W19PS1001 WR-19 40 - 60 0 - 180 1 1 3 Round Cover UG-383/U-Mod EAR99

PE-W22PS1001 WR-22 33 - 50 0 - 180 1 1 4 Round Cover UG-383/U EAR99

PE-W28PS1002 WR-28 26.5 - 40 0 - 180 1 4 Square Cover UG-599/U EAR99

PE-W42PS1001 WR-42 18 - 26.5 0 - 180 1.5 1 4 Square Cover UG-595/U EAR99

Waveguide Polarizers

PE P/N Band RF Frequency Typical Typical Typical Axial Length Flange Type ECCN
Range (GHz) Bandwidth Insertion Loss Ratio (in)
(MHz) (dB) (dB)
PEWPL0000 Ku 14 - 16 1000 0.5 1.1 3 Square Cover UG-419/U-Mod EAR99

PEWPL0005 Ka 26 - 33 3500 0.5 1.1 2 Square Cover UG-599/U-Mod EAR99

PEWPL0008 V 57.5 - 62.5 2500 0.5 1.1 1.31 Round Cover UG-385/U-Mod EAR99

Waveguide Rotary Joints

PE P/N WG Design Max Rotation Max Input Max Input Max Insertion Body Material ECCN
Size Speed (RPM) Power (Watts) VSWR Loss (dB) and Plating
PEW28RJ0001 WR-28 L Style 30 100 1.2:1 0.3 Brass, Paint EAR99

PEW34RJ0001 WR-34 L Style 30 100 1.25:1 0.3 Brass, Paint EAR99

PEW62RJ0002 WR-62 Inline Style 30 100 1.2:1 0.3 Brass, Paint EAR99

PEW62RJ0001 WR-62 L Style 30 100 1.2:1 0.25 Aluminum, Paint EAR99

PEW75RJ0003 WR-75 Inline Style 30 100 1.2:1 0.3 Aluminum, Paint EAR99
