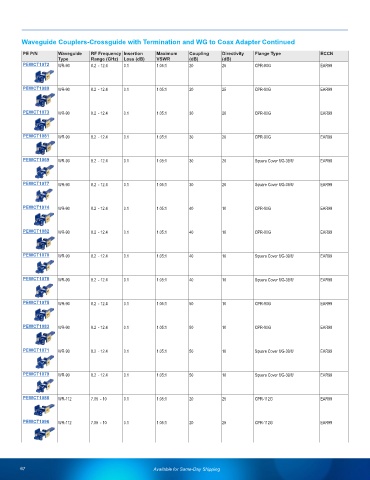

Page 68 - Waveguides Product Selection Guide

Waveguide Couplers-Crossguide with Termination and WG to Coax Adapter Continued
PE P/N Waveguide RF Frequency Insertion Maximum Coupling Directivity Flange Type ECCN
Type Range (GHz) Loss (dB) VSWR (dB) (dB)
PEWCT1072 WR-90 8.2 - 12.4 0.1 1.05:1 20 25 CPR-90G EAR99

PEWCT1080 WR-90 8.2 - 12.4 0.1 1.05:1 20 25 CPR-90G EAR99

PEWCT1073 WR-90 8.2 - 12.4 0.1 1.05:1 30 20 CPR-90G EAR99

PEWCT1081 WR-90 8.2 - 12.4 0.1 1.05:1 30 20 CPR-90G EAR99

PEWCT1069 WR-90 8.2 - 12.4 0.1 1.05:1 30 20 Square Cover UG-39/U EAR99

PEWCT1077 WR-90 8.2 - 12.4 0.1 1.05:1 30 20 Square Cover UG-39/U EAR99

PEWCT1074 WR-90 8.2 - 12.4 0.1 1.05:1 40 10 CPR-90G EAR99

PEWCT1082 WR-90 8.2 - 12.4 0.1 1.05:1 40 10 CPR-90G EAR99

PEWCT1070 WR-90 8.2 - 12.4 0.1 1.05:1 40 10 Square Cover UG-39/U EAR99

PEWCT1078 WR-90 8.2 - 12.4 0.1 1.05:1 40 10 Square Cover UG-39/U EAR99

PEWCT1075 WR-90 8.2 - 12.4 0.1 1.05:1 50 10 CPR-90G EAR99

PEWCT1083 WR-90 8.2 - 12.4 0.1 1.05:1 50 10 CPR-90G EAR99

PEWCT1071 WR-90 8.2 - 12.4 0.1 1.05:1 50 10 Square Cover UG-39/U EAR99

PEWCT1079 WR-90 8.2 - 12.4 0.1 1.05:1 50 10 Square Cover UG-39/U EAR99

PEWCT1088 WR-112 7.05 - 10 0.1 1.05:1 20 25 CPR-112G EAR99

PEWCT1096 WR-112 7.05 - 10 0.1 1.05:1 20 25 CPR-112G EAR99

67 Available for Same-Day Shipping
