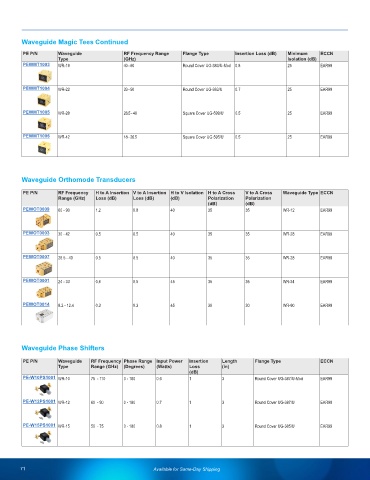

Page 72 - Waveguides Product Selection Guide

Waveguide Magic Tees Continued
PE P/N Waveguide RF Frequency Range Flange Type Insertion Loss (dB) Minimum ECCN
Type (GHz) Isolation (dB)
PEWMT1003 WR-19 40 - 60 Round Cover UG-383/U-Mod 0.8 25 EAR99

PEWMT1004 WR-22 33 - 50 Round Cover UG-383/U 0.7 25 EAR99

PEWMT1005 WR-28 26.5 - 40 Square Cover UG-599/U 0.5 25 EAR99

PEWMT1006 WR-42 18 - 26.5 Square Cover UG-595/U 0.5 25 EAR99

Waveguide Orthomode Transducers

PE P/N RF Frequency H to A Insertion V to A Insertion H to V Isolation H to A Cross V to A Cross Waveguide Type ECCN
Range (GHz) Loss (dB) Loss (dB) (dB) Polarization Polarization
(dB) (dB)
PEWOT0009 60 - 90 1.2 0.8 40 35 35 WR-12 EAR99

PEWOT0003 30 - 42 0.5 0.5 40 35 35 WR-28 EAR99

PEWOT0007 26.5 - 40 0.5 0.5 40 35 35 WR-28 EAR99

PEWOT0001 24 - 33 0.6 0.5 45 35 35 WR-34 EAR99

PEWOT0014 8.2 - 12.4 0.3 0.3 45 30 30 WR-90 EAR99

Waveguide Phase Shifters

PE P/N Waveguide RF Frequency Phase Range Input Power Insertion Length Flange Type ECCN
Type Range (GHz) (Degrees) (Watts) Loss (in)
(dB)
PE-W10PS1001 WR-10 75 - 110 0 - 180 0.6 1 3 Round Cover UG-387/U-Mod EAR99

PE-W12PS1001 WR-12 60 - 90 0 - 180 0.7 1 3 Round Cover UG-387/U EAR99

PE-W15PS1001 WR-15 50 - 75 0 - 180 0.8 1 3 Round Cover UG-385/U EAR99

71 Available for Same-Day Shipping
