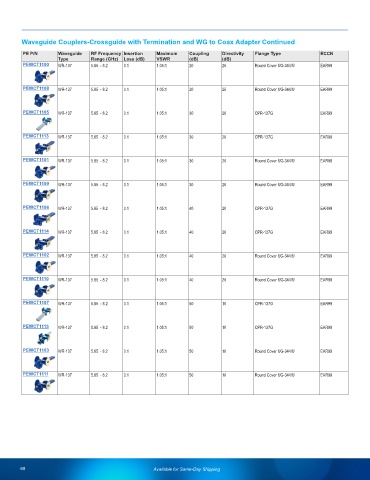

Page 70 - Waveguides Product Selection Guide
P. 70
Waveguide Couplers-Crossguide with Termination and WG to Coax Adapter Continued
PE P/N Waveguide RF Frequency Insertion Maximum Coupling Directivity Flange Type ECCN
Type Range (GHz) Loss (dB) VSWR (dB) (dB)
PEWCT1100 WR-137 5.85 - 8.2 0.1 1.05:1 20 25 Round Cover UG-344/U EAR99
PEWCT1108 WR-137 5.85 - 8.2 0.1 1.05:1 20 25 Round Cover UG-344/U EAR99
PEWCT1105 WR-137 5.85 - 8.2 0.1 1.05:1 30 20 CPR-137G EAR99
PEWCT1113 WR-137 5.85 - 8.2 0.1 1.05:1 30 20 CPR-137G EAR99
PEWCT1101 WR-137 5.85 - 8.2 0.1 1.05:1 30 20 Round Cover UG-344/U EAR99
PEWCT1109 WR-137 5.85 - 8.2 0.1 1.05:1 30 20 Round Cover UG-344/U EAR99
PEWCT1106 WR-137 5.85 - 8.2 0.1 1.05:1 40 20 CPR-137G EAR99
PEWCT1114 WR-137 5.85 - 8.2 0.1 1.05:1 40 20 CPR-137G EAR99
PEWCT1102 WR-137 5.85 - 8.2 0.1 1.05:1 40 20 Round Cover UG-344/U EAR99
PEWCT1110 WR-137 5.85 - 8.2 0.1 1.05:1 40 20 Round Cover UG-344/U EAR99
PEWCT1107 WR-137 5.85 - 8.2 0.1 1.05:1 50 10 CPR-137G EAR99
PEWCT1115 WR-137 5.85 - 8.2 0.1 1.05:1 50 10 CPR-137G EAR99
PEWCT1103 WR-137 5.85 - 8.2 0.1 1.05:1 50 10 Round Cover UG-344/U EAR99
PEWCT1111 WR-137 5.85 - 8.2 0.1 1.05:1 50 10 Round Cover UG-344/U EAR99
69 Available for Same-Day Shipping
