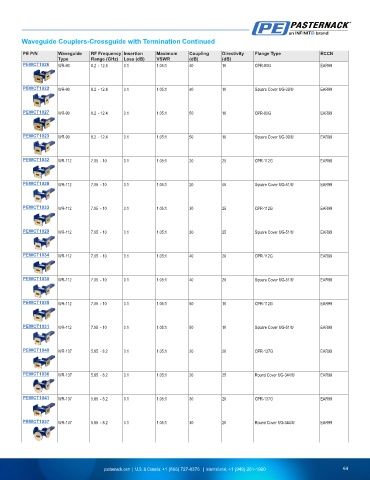

Page 65 - Waveguides Product Selection Guide

Waveguide Couplers-Crossguide with Termination Continued
PE P/N Waveguide RF Frequency Insertion Maximum Coupling Directivity Flange Type ECCN
Type Range (GHz) Loss (dB) VSWR (dB) (dB)
PEWCT1026 WR-90 8.2 - 12.4 0.1 1.05:1 40 10 CPR-90G EAR99

PEWCT1022 WR-90 8.2 - 12.4 0.1 1.05:1 40 10 Square Cover UG-39/U EAR99

PEWCT1027 WR-90 8.2 - 12.4 0.1 1.05:1 50 10 CPR-90G EAR99

PEWCT1023 WR-90 8.2 - 12.4 0.1 1.05:1 50 10 Square Cover UG-39/U EAR99

PEWCT1032 WR-112 7.05 - 10 0.1 1.05:1 20 25 CPR-112G EAR99

PEWCT1028 WR-112 7.05 - 10 0.1 1.05:1 20 45 Square Cover UG-51/U EAR99

PEWCT1033 WR-112 7.05 - 10 0.1 1.05:1 30 25 CPR-112G EAR99

PEWCT1029 WR-112 7.05 - 10 0.1 1.05:1 30 25 Square Cover UG-51/U EAR99

PEWCT1034 WR-112 7.05 - 10 0.1 1.05:1 40 20 CPR-112G EAR99

PEWCT1030 WR-112 7.05 - 10 0.1 1.05:1 40 20 Square Cover UG-51/U EAR99

PEWCT1035 WR-112 7.05 - 10 0.1 1.05:1 50 10 CPR-112G EAR99

PEWCT1031 WR-112 7.05 - 10 0.1 1.05:1 50 10 Square Cover UG-51/U EAR99

PEWCT1040 WR-137 5.85 - 8.2 0.1 1.05:1 20 20 CPR-137G EAR99

PEWCT1036 WR-137 5.85 - 8.2 0.1 1.05:1 20 25 Round Cover UG-344/U EAR99

PEWCT1041 WR-137 5.85 - 8.2 0.1 1.05:1 30 20 CPR-137G EAR99

PEWCT1037 WR-137 5.85 - 8.2 0.1 1.05:1 30 20 Round Cover UG-344/U EAR99
